ECOBLUE TECHNOLOGY

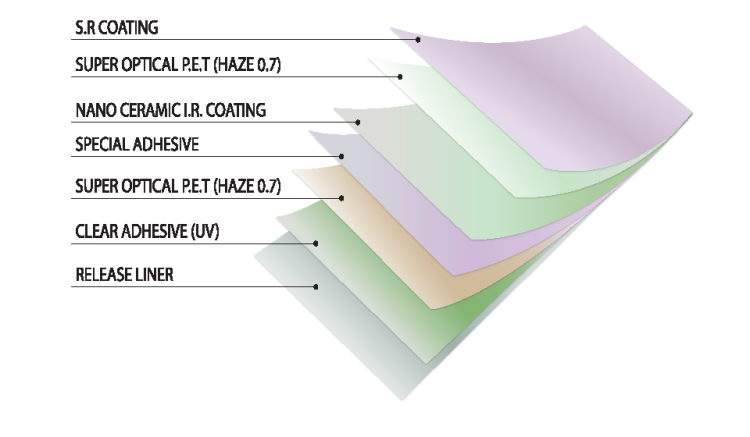

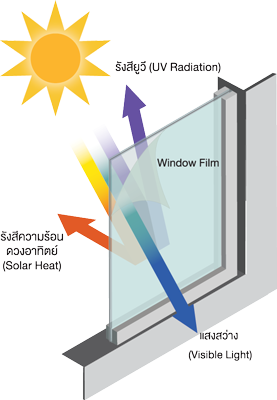

ECOBLUE window film is an innovative film with high heat rejection efficiency. ECOBLUE is made from multilayer crystal clear, flexible, tough and durable polyester layers with multilayers nano ceramic molecular coating. Varied by means of multi-Layer Sputtering or Multi-Layer inorganic Coating technolgoy,  various special ceramic nanoparticles layers up to 9 layers of silver and synthesised ceramic are coated on PET film.  ECOBLUE has special property of blocking mainly infrared heat and UV rays in sunlight from passing through the film layer (Spectrally Selective Infrared Filtering). However, ECOBLUE film allows visible light to pass through as much as 70%, giving clear vision and low reflection. ECOBLUE does not interferewith communication signal interference such as GPS or mobile phones. Hence, ECOBLUE window film is the ultimate heat shield and suitable for use with residential and automotive glass.


Spectrally Selective Technology makes ECOBLUE window film reduce infrared heat radiation up to 98% and UV rays up to 99%. The infrared is the main factor that affects the sensory perception of human skin heat. So behind ECOBLUE window film  you will feel cooler and more comfortable than other normal techonology films obviously.

ฟิล์มเซรามิคอีโค่บลู ลดรังสีอินฟาเรดได้เกือบ 100%  เหนือกว่าฟิล์มอื่นๆ
ฟิล์มเซรามิคอีโค่บลูทุกรุ่นลดรังสีอินฟาเรดได้เกือบ 100%

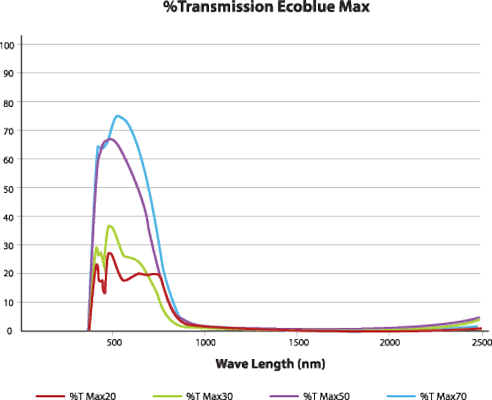

All ECOBLUE window film series have been verified for their properties throughly with Spectrophotometer ELMER PERKIN model LAMBDA 250, which is a  test instrument for solar radiation for energy-saving glass industry. The test results and radiation graphs of the various ECOBLUE window films are analyzed to ensure their true performance
